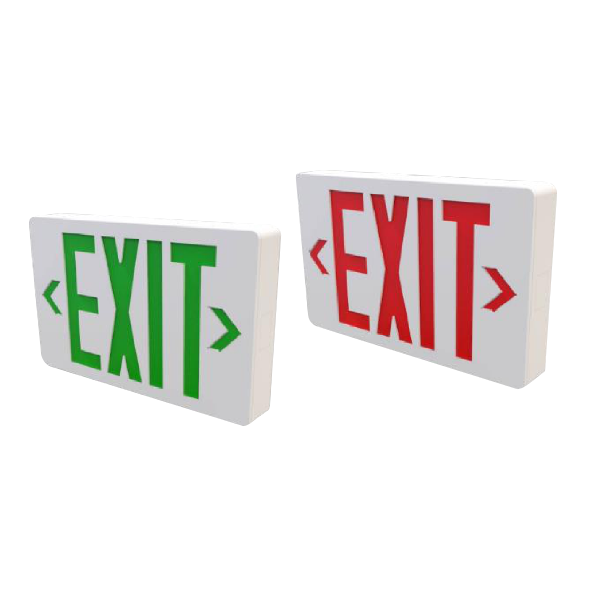

MODEL NO

• S1-R
• S1-R-CT
• S1-G
• S1-G-CT
• S1-R-ZD
• S1-R-CT-ZD

HOUSING

• Injection-molded thermoplastic housing.
• Plastic enclosure with flame retardant.
• Compact and decorative design.
• EXIT letter 6″ height and 3/4″ stroke, snap-in and snap out a direction indicator.

ELECTRICAL

• Suitable for wall mount, ceiling mount, and end mounting.
• Universal J-Box mounting pattern on the backplate.

ILLUMINATION

• 120/277VAC 60Hz dual voltage input optional.
• Brownout circuit protection for ST/SD fixtures.
• Battery low voltage protection.
• Solid-Status transfer circuit.
• Test switch and battery charging indicator.
• Maintenance-free Ni-cad battery.
• 24 hours recharge more than 90 minutes discharge.
