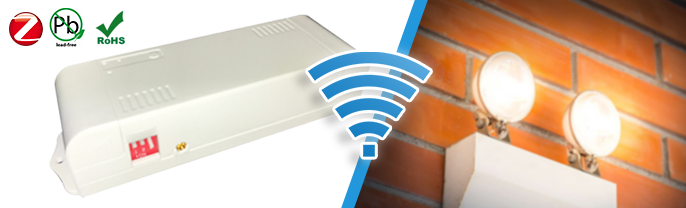

ZBA-T Series Zigbee Phase-Cut Ada ptor
The ZBA Series is a basic control node in Zigbee lighting control environment. It is designed to be installed in line with lighting fixtures to provide a phase-cut AC source to control fixture brightness. It is compatible with Zigbee H.A 1.2 standard will work flawlessly for every system that uses the same standard. The built-in on/off feature will prevent any possible leakage and the “Power Metering” provides real-time power consumption measurement.
The ZBA-T Series can work in wide range input from 110VAC to 277VAC and its compact size would be ideal for track-light and recess light applications. The standard OTA feature helps firmware upgrade to ensure long term product maintenance and reliabilities.
| LED Indicators | Red (Power On) Green Flesh (Not Commissioned) Green Solid (Commissioned) |
| RST | Reset Button |
| Ext. Antenna | Ext Antenna Connector |
| SW 1 | Reserved |
| SW 2 | Reserved |
| SW 3 | On: Ext. Antena Enable Off: Ext Antena Disable |
| ZBA-T001-R | Reverse Phase |
| ZBA-T001-F | Forward Phase |
| Compatibility | Zigbee H.A 1.2 |
| Input | 110-277VAZC/50-60Hz |
| Operating Environment | -20 to 62°C |
| Radio Properties | 2.4 GHz +19.5dBm Transmit Power |
| Internal Antenna | Built-in |
| External Antenna | Optional with connector |
| On/Off | 200VA max |
| Power Measurement | 2% accuracy |
| Dimming Control | Leading-Edge Trailing-Edge Selectable |
| Dimensions | 102x41x24mm (L x W x H) |
| Compliance | UL – Pending FCC – Certified |
| Warranty | 5 Years |
